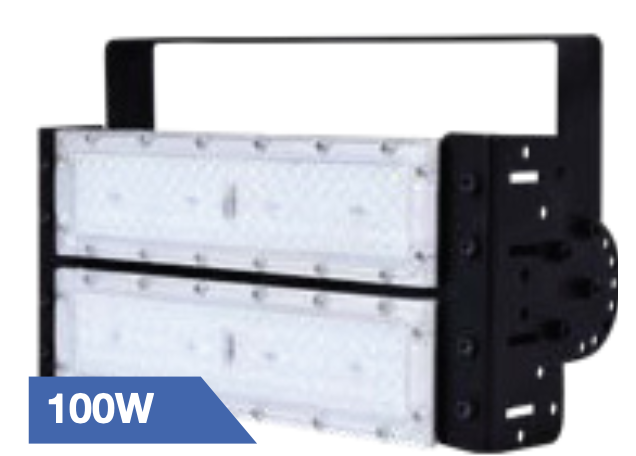

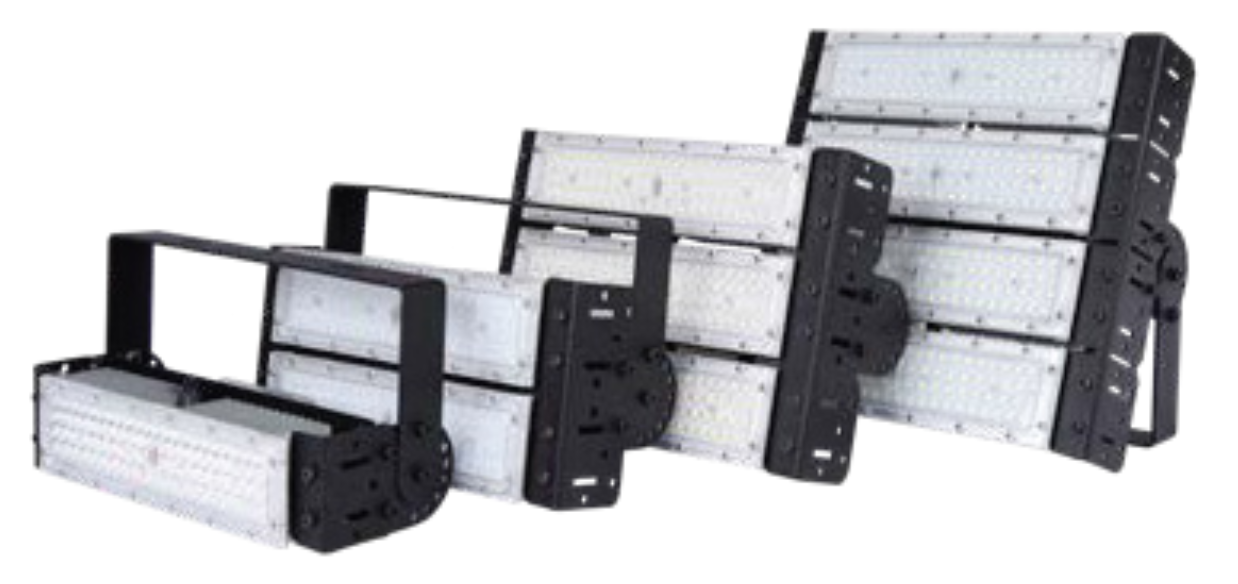

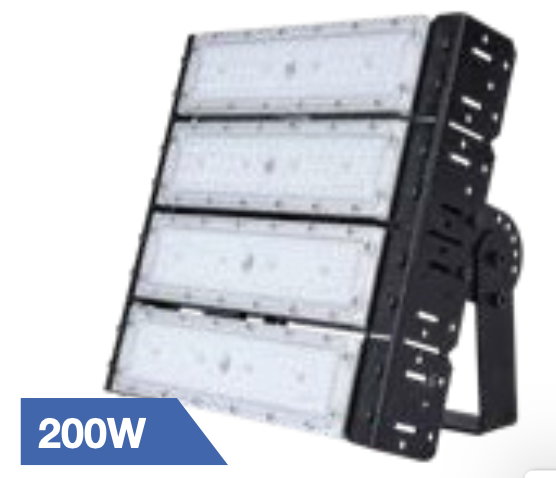

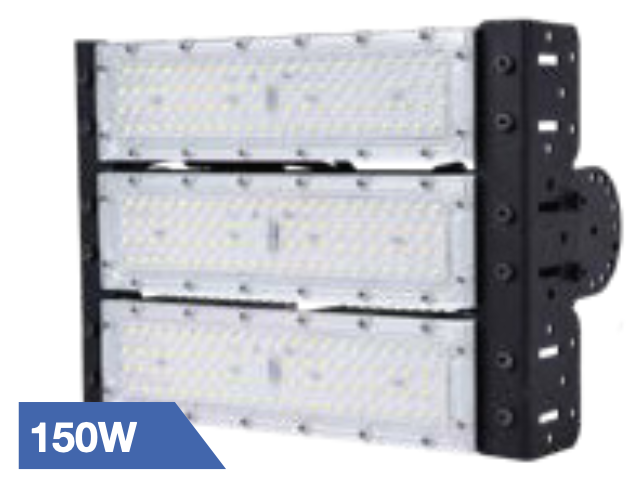

LR018A – LED MODULAR FLOOD LIGHT IP66

FEATURES

• • Extruded Aluminium Module Provides Excellent Heat Dissipation

  • Colour Rendering Index >70Ra (>80Ra Available on request)

  • CCT 2700k – 6500k (5700k standard)

  • LED Chip Lumiled Efficacy 139lm/w (Lumiled 3030 120ma 70cri)

  • Lens options Asymmetric and Symmetric Lens Available on Request

  • Beam Angles 15o;40o;60o;90o;120o (120o Standard)

  • Surge Protection 4KV/2kVA (optional Extra Surge Protection on request)

  • Input Voltage Frequency 50Hz/60hz

  • Driver Brand MoonLight

  • Ingress Protection IP66

  • Impact Protection IK08

  • Fixture Coating Options Powder Coated Black; Galvanised for

  • Coastal Areas with Stainless Steel Nuts and Bolts

  • Operational Temperature -30o to 50oC

  • 50 000hrs (Ta 30oC@L70)B50

  • Input Voltage 85v-265v

  • Warranty 5 Years

APPLICATIONS

• Security Lighting

• Industrial Light

• High-Mast Lighting

• Sports field Lighting
